LOW-VOLTAGE STANDARD BELL-SAUCER OVERHEAD LUMINAIRES COMPONENTS

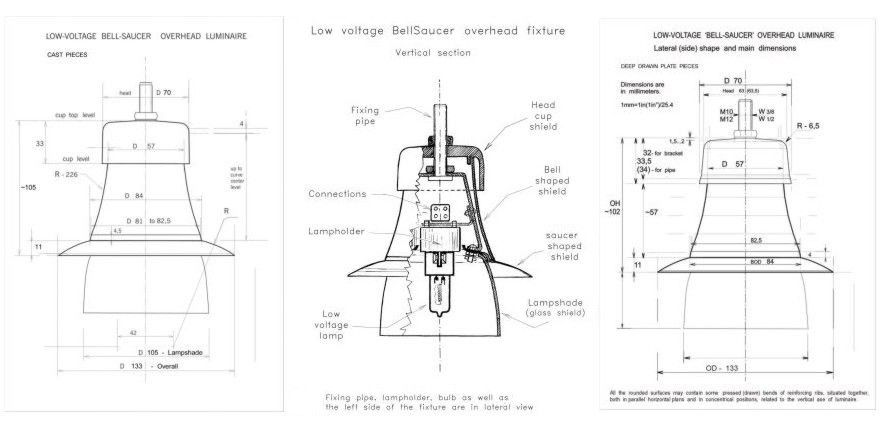

Example of Standard Low-voltage Bell-Saucer 133-84-70 Radial-Waves Overhead Luminaire


Products contained in this web-page may be considered as PROMOTIONS,
and may be manufactured using details exposed below.


Dimensions are mainly in millimeters (mm).



Optimal mounting height, for this size of low voltage fixtures, is around 2,75... 3,65 m, or 9... 12 ft.



Cast pieces variant - componence:

- Cast material -standard- head-cup shield.
- Cast material -standard- Bell-shaped shield.
- Pressed Aluminium or steel plate Saucer-shaped shield.

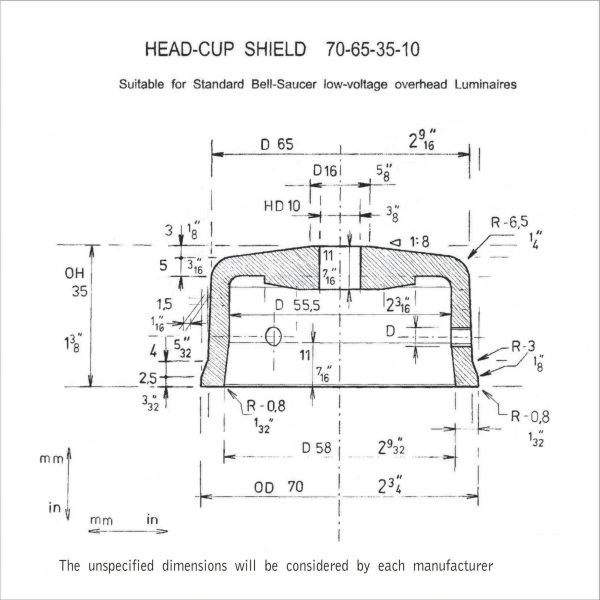

Head-Cup Shield - Tapered top surface

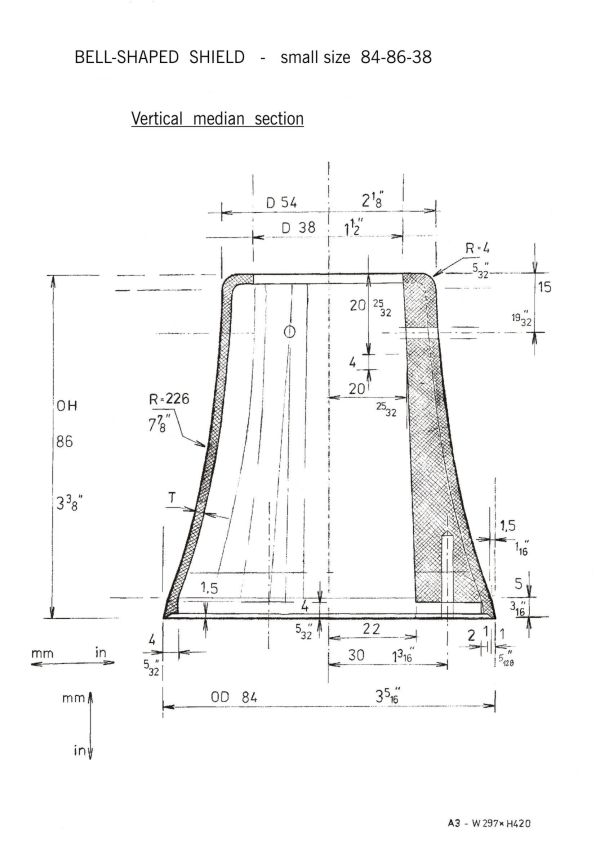

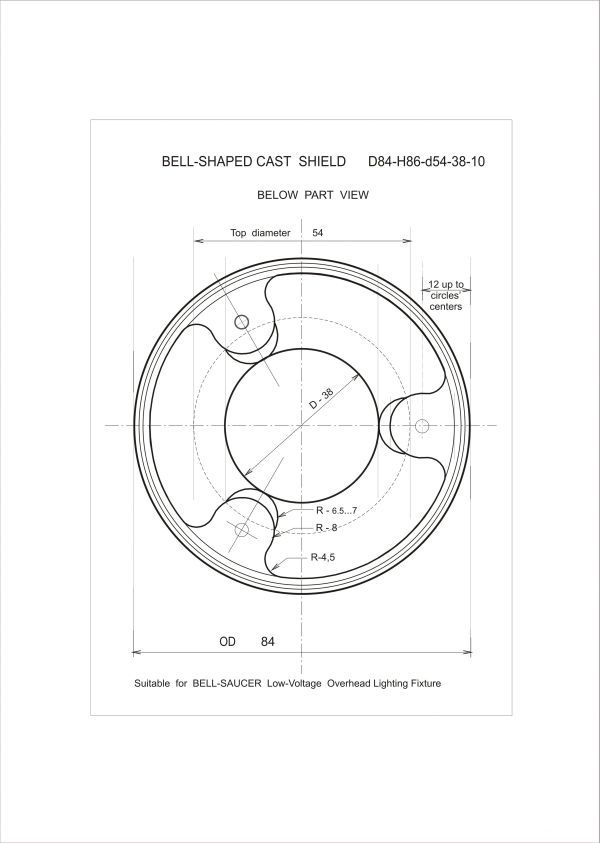

Bell-shaped Shield





Deep drawn plate variant:

- Deep drawn (pressed) plate components.
- Variantes for side-arm or overhead wire.

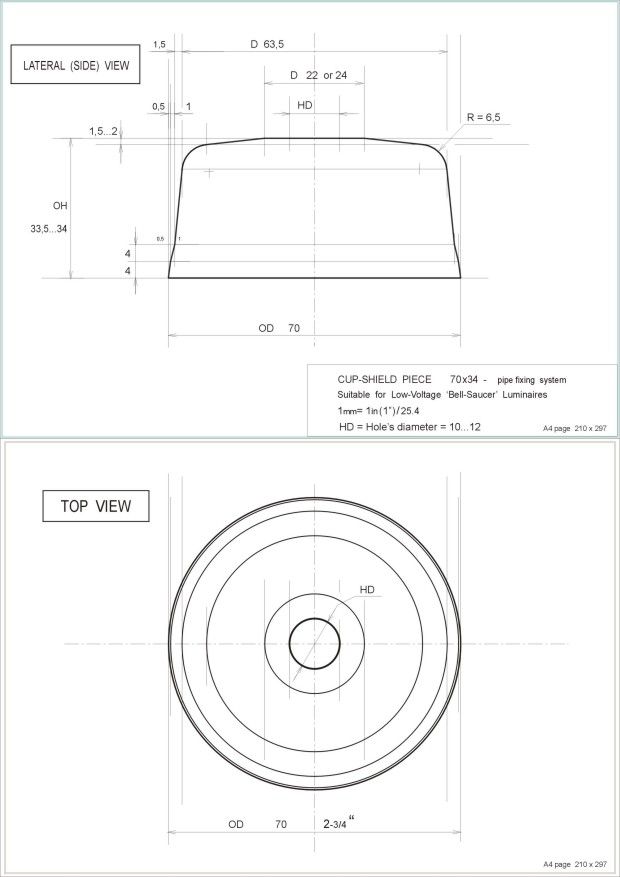

Head-Cup Shield - Tapered top surface

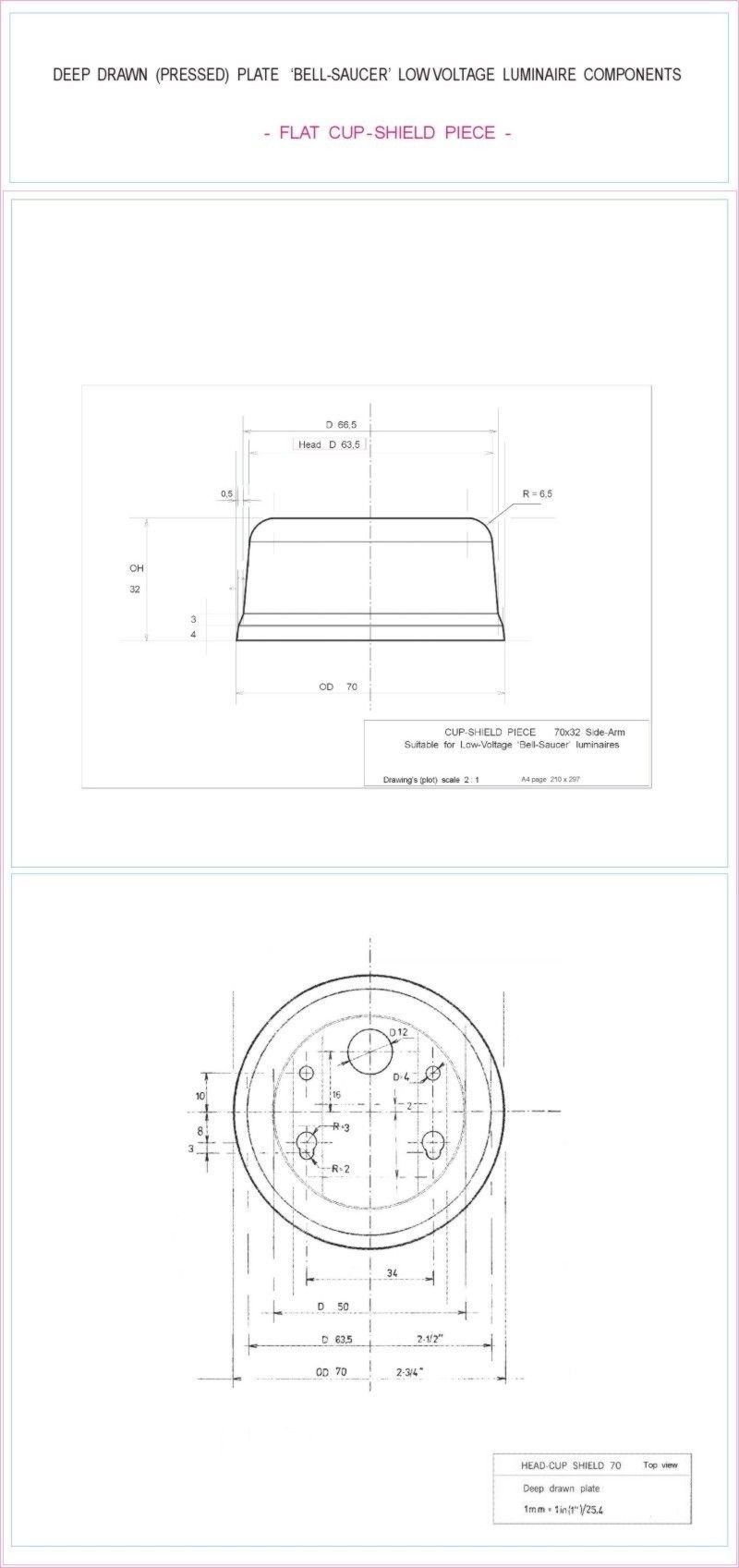

Head-Cup Shield - Flat top surface

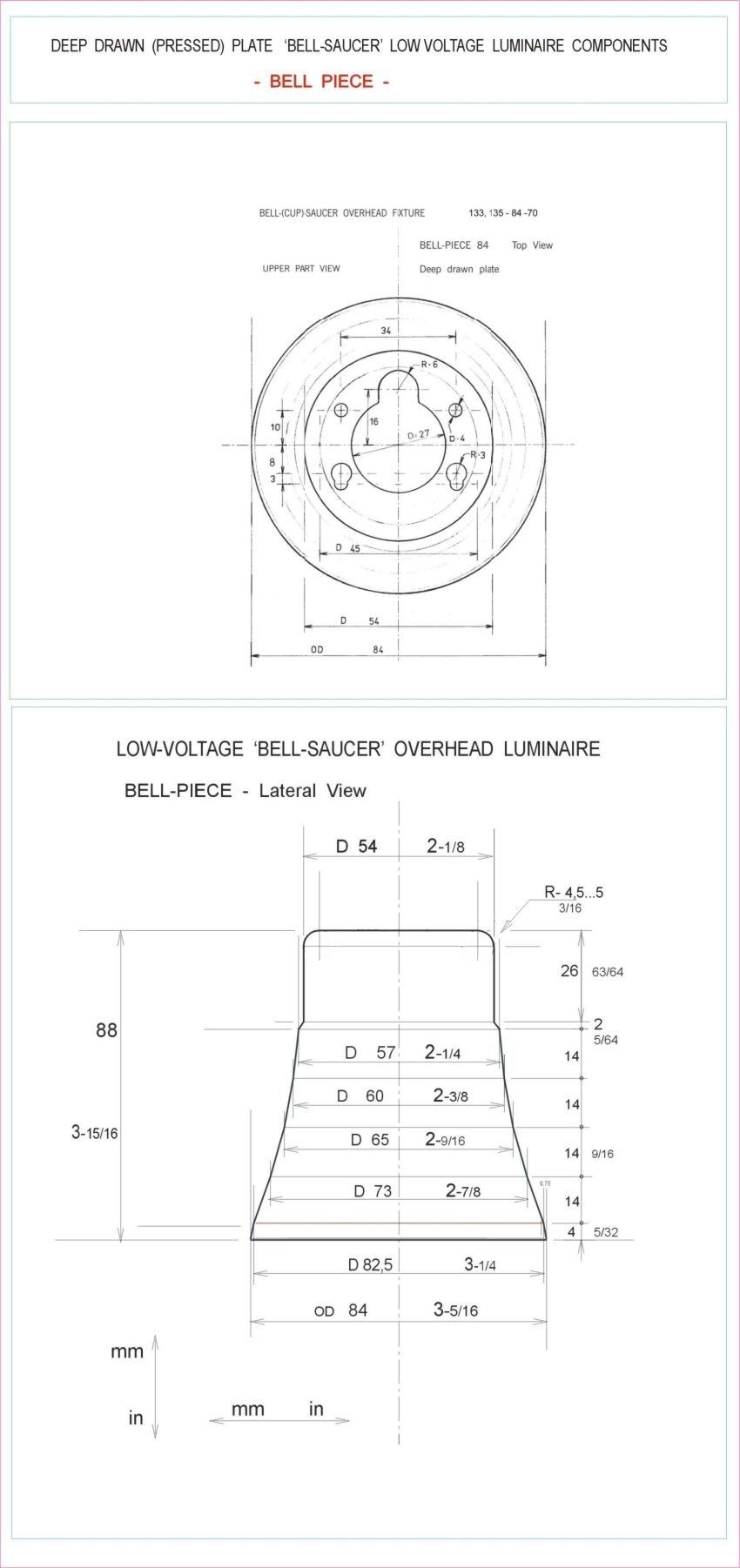

Bell-shaped Shield

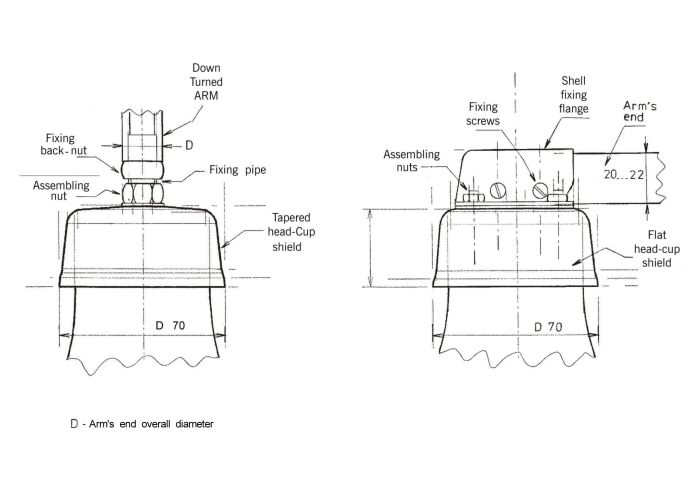

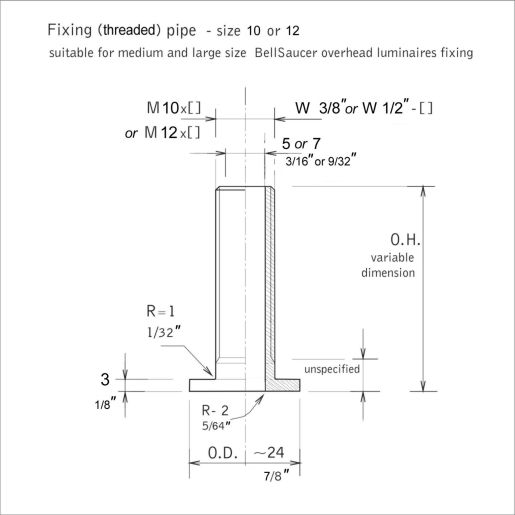

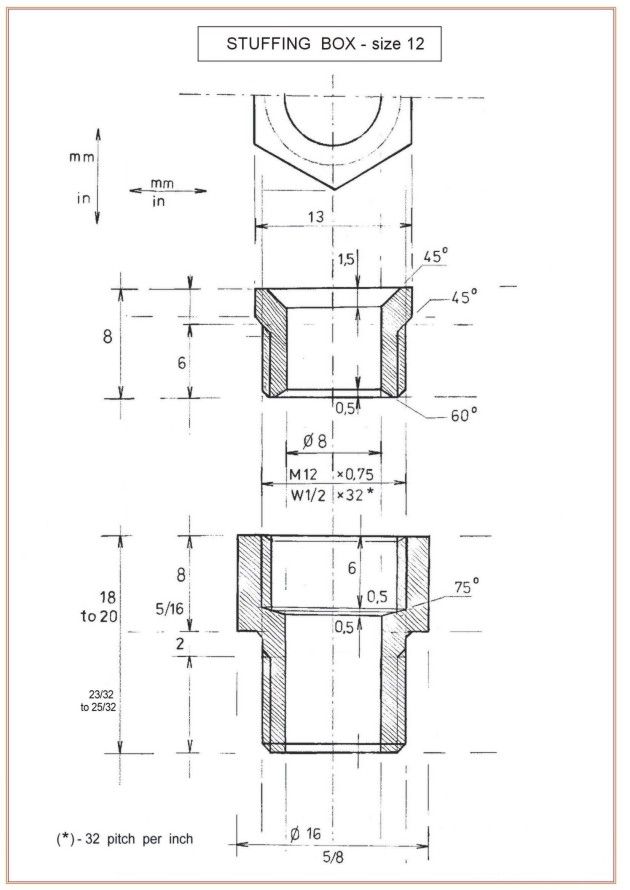

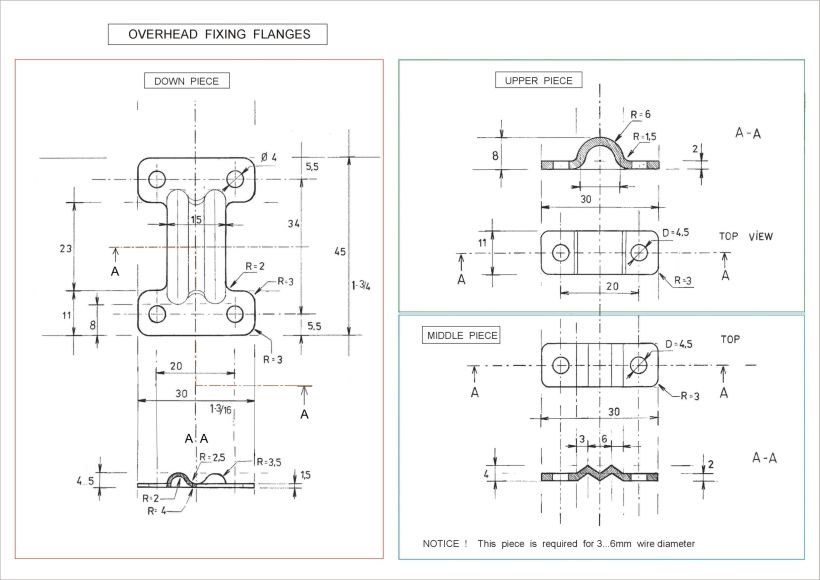

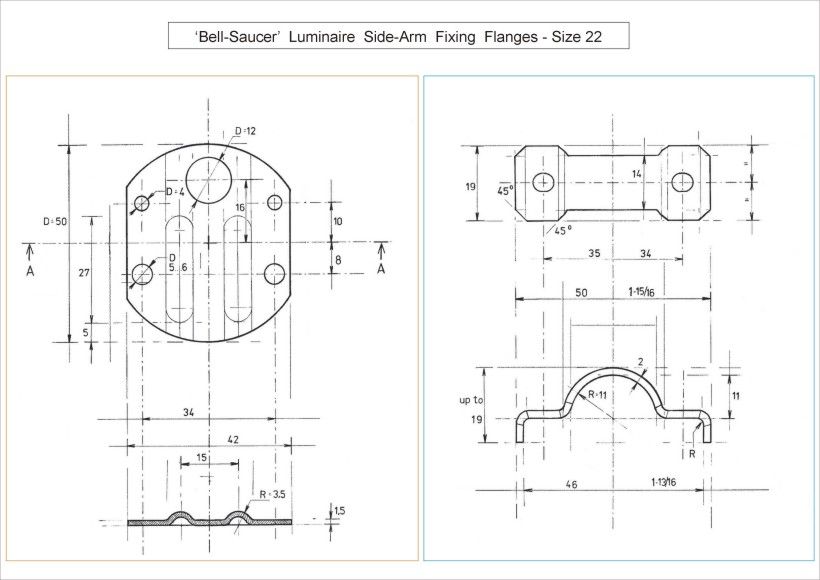

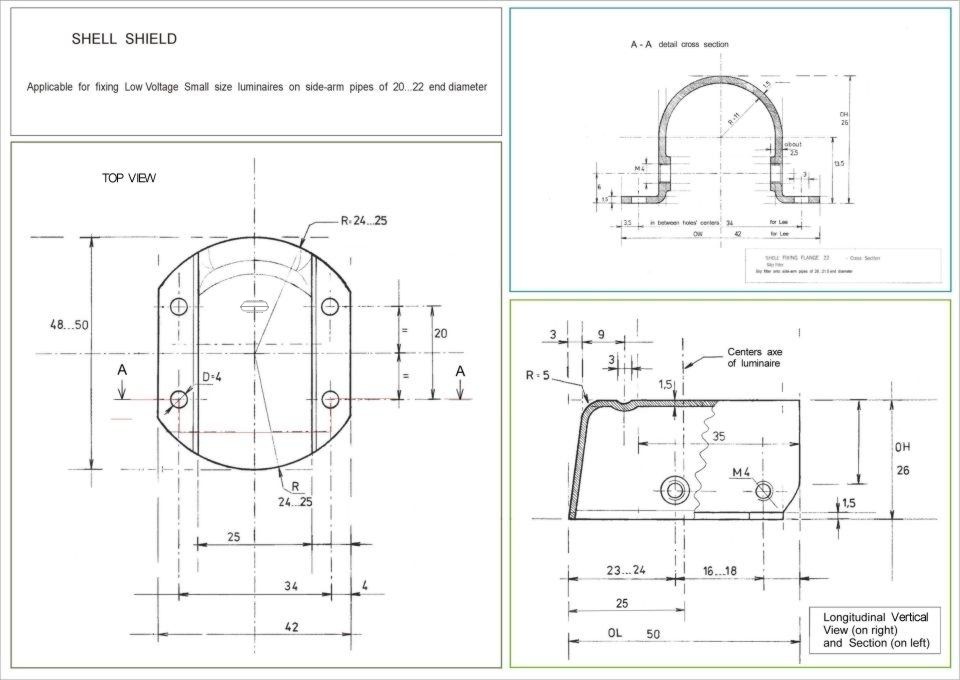

Fixing Accessories


1 - Piece available for 'Tapered Cup Shield'



2 - Pieces available for 'Flat Cup Shield'





Common pieces

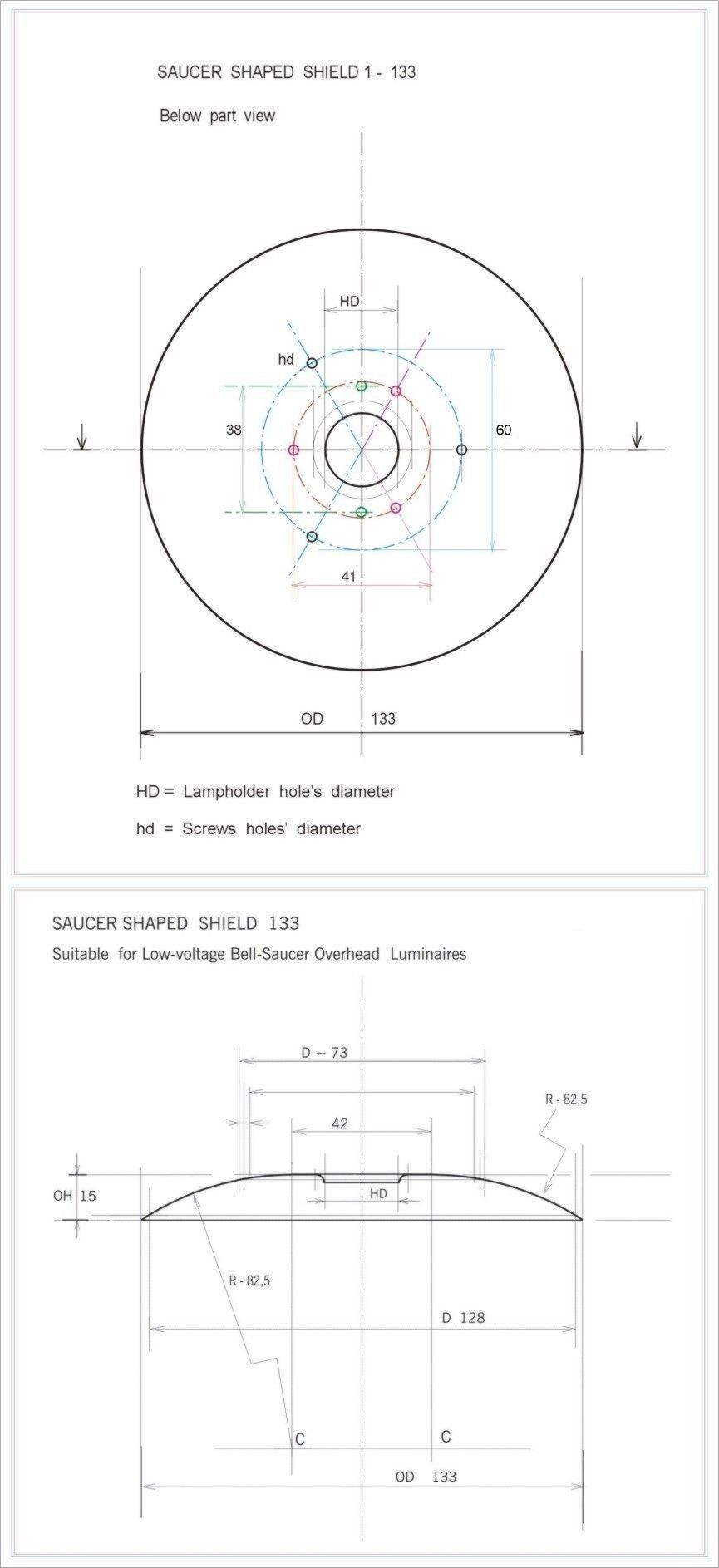

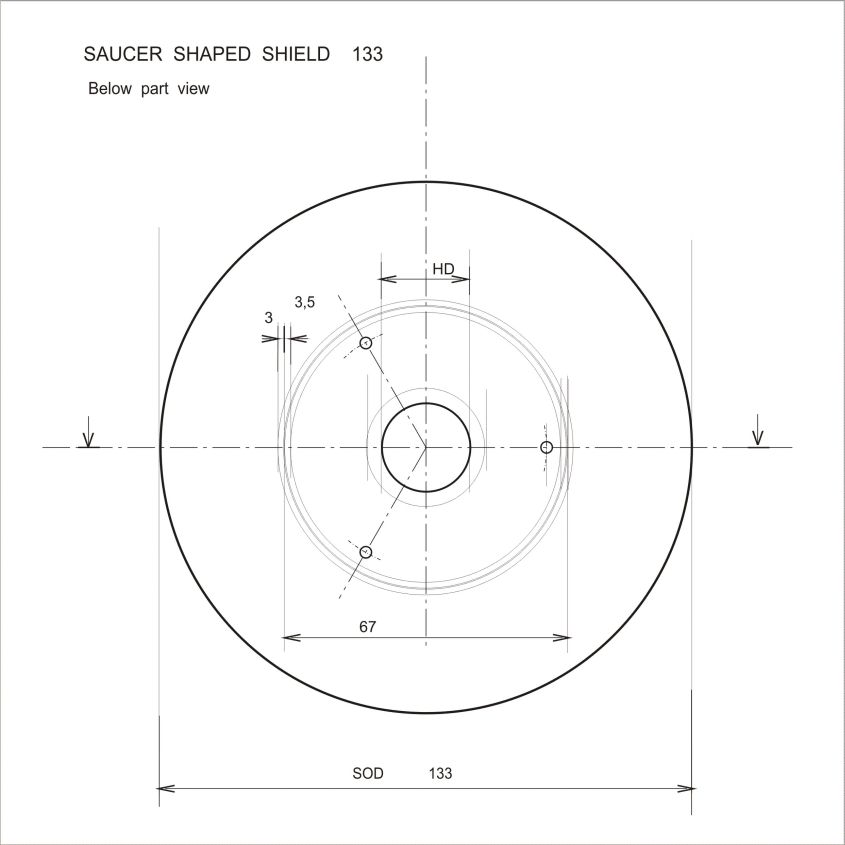

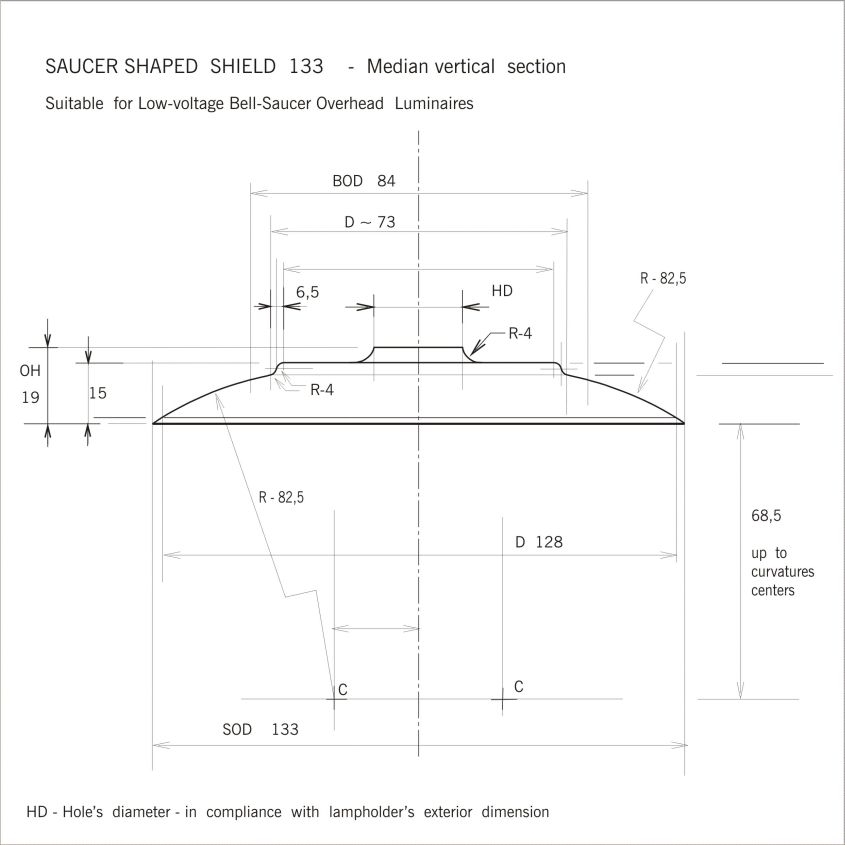

Saucer-shaped Shield

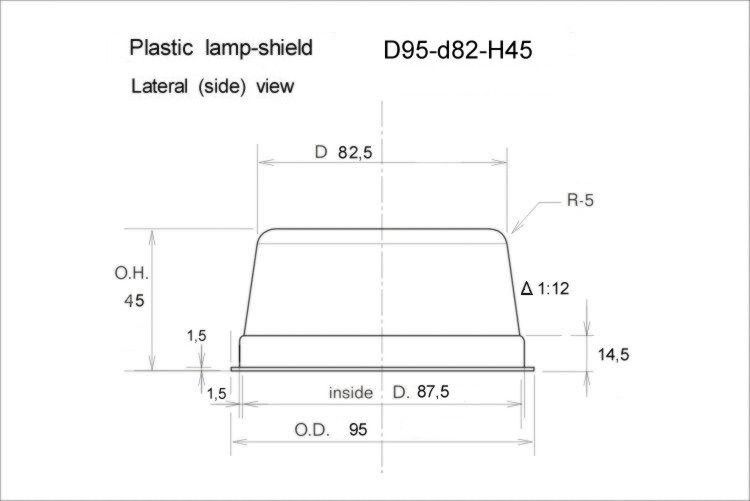

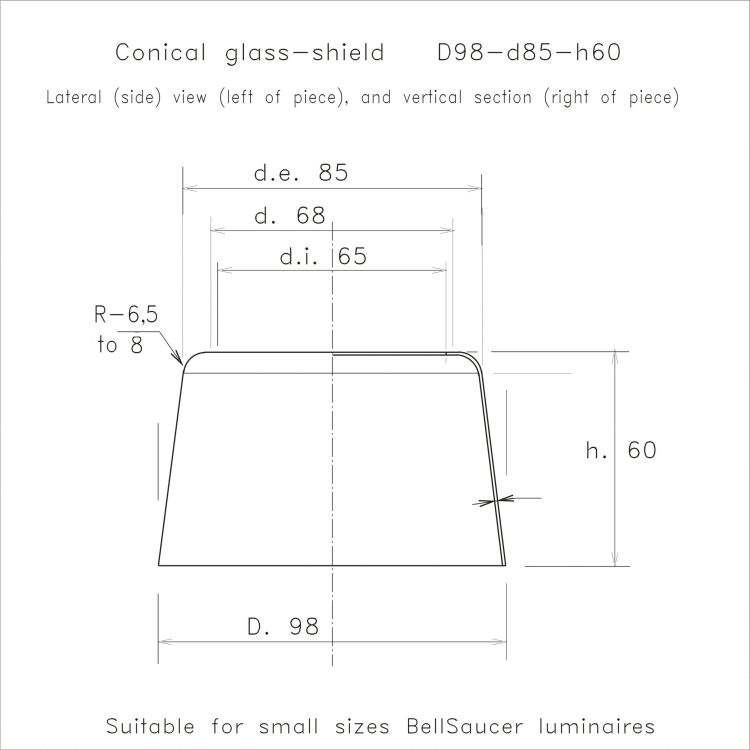

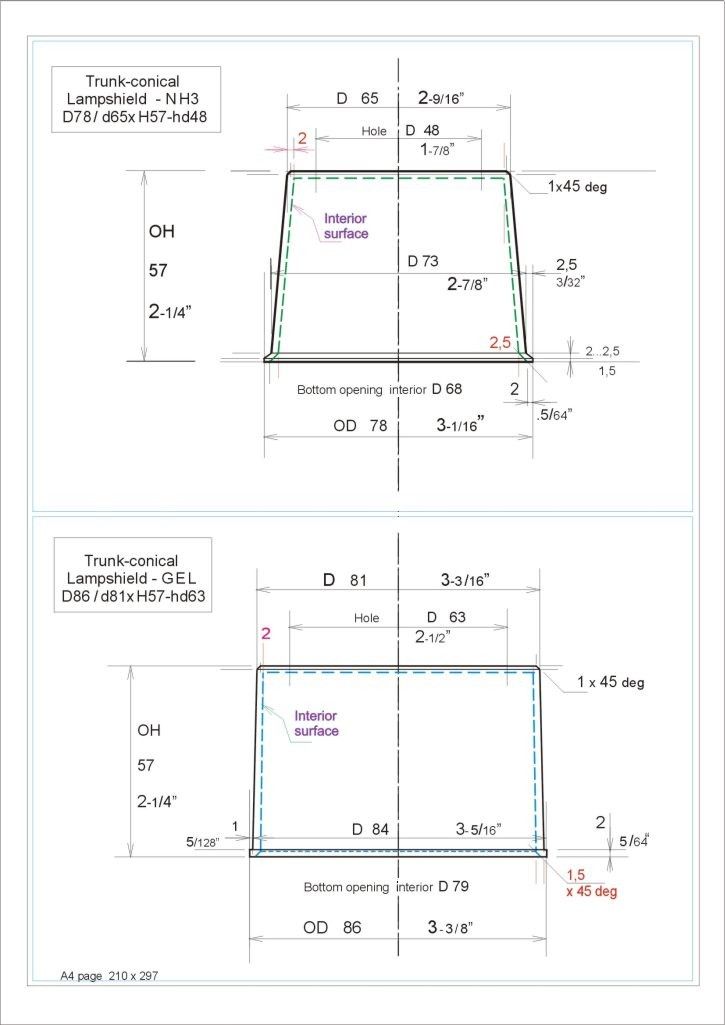

Lampshades




WARNING !

This kind of fixtures may use any kinds of low voltage bulbs or lamps.
In case of using automotive bulbs, or any other kind of bulbs or lamps which use a mase pole contact, a new kind of lampholder with all the contact poles insulated (isolamented) related to the fixture's mase (body parts) shall be designed.
The use of fixtures' or lamposts' body as electrical conductor is forbiden.
The lampost and the low voltage fixture must be, only, connected to the grounding electrodes network.

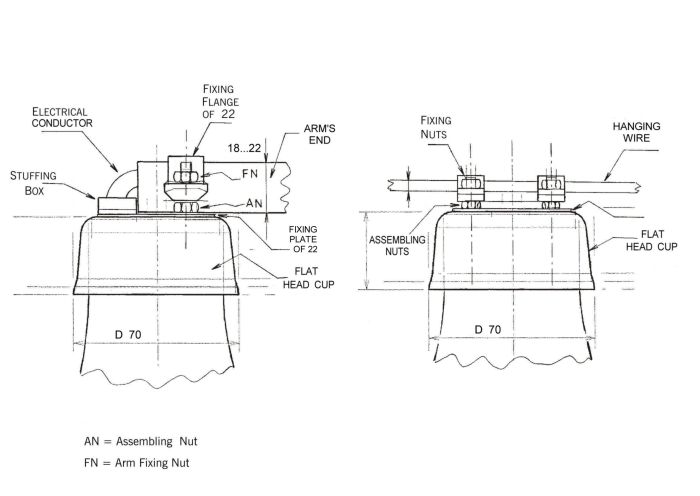

Fixing solutions



There are no gaskets designs available for moment.
Each manufacturer will design the gaskets that he considers necessary.


TERMS OF DESIGNS USAGE


The main term of mechanical drawings usage, which represents luminaries component parts, for manufacturing, is to be used as they are designed.

If our design is not suitable for your way of manufacturing, or concept, you may modify in your way - as you consider more suitable for you - only the interior (inside) part(s) (components) of the luminaries ; preserving the outside shapes and dimensions.

Any changes are allowed to all components or solutions, which are hidden in the assembled luminaire.
More exactly, you have to keep the outside of luminaries untouched.

Any kind of hacking, or combinations of your own solutions, which change the outside shape and dimensions of the assembly of the luminaire, are forbidden.

The below part of 'Bell-(Cup)-Saucer' Luminaires (as body of fixture or as lampshade), may be considered as "inside", too. Therefore, any changes are allowed on all below parts, which are above the horizontal lowest plane of the saucer-shaped-shield, or on those of lampshield (inside of lampshade).


NOTICE !
Anytime, if there are more suggested values for the same dimension, the manufacturer may chose those, which he considers more suitable.
On drawings which show both dimensions' values in millimeters and inches, usually, values in millimeters are written on the left or upside, and those in inches are mentioned on right or down one.

Please contact us for enquiries, suggestions or comments.
