Standard Bell-Saucer overhead luminaires components

Example 2.2 - Standard BellSaucer 165-216-356 Overhead Luminaire



Main features:


- Cast material -high tapered- head-cup shield.
- Pressed Aluminium or steel plate Bell-shaped shield.
- Pressed Aluminium or steel plate -high- Saucer-shaped shield.

More details in this page will be available later

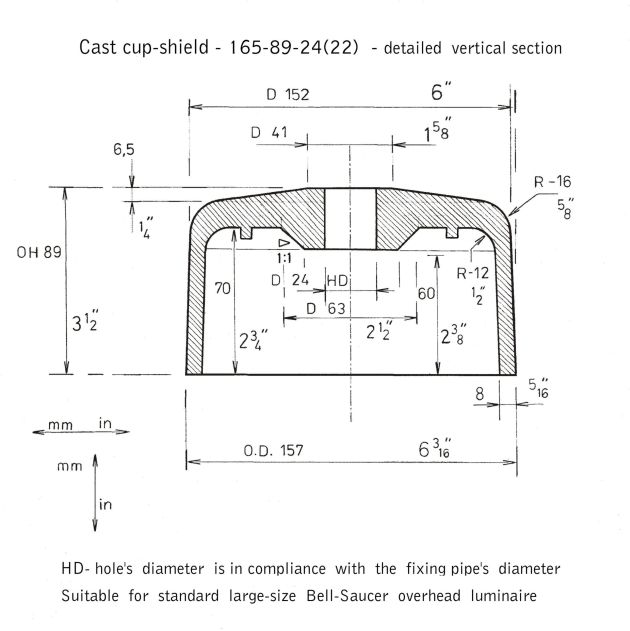

Head-Cup Shield 1

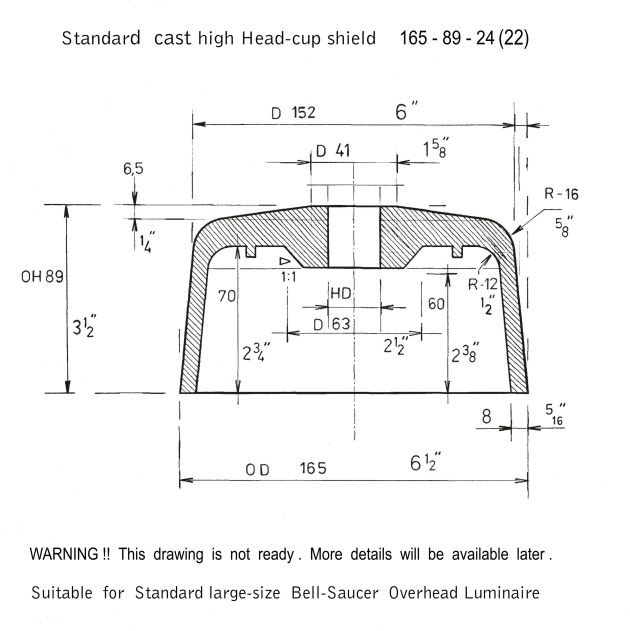

Head-Cup Shield 2

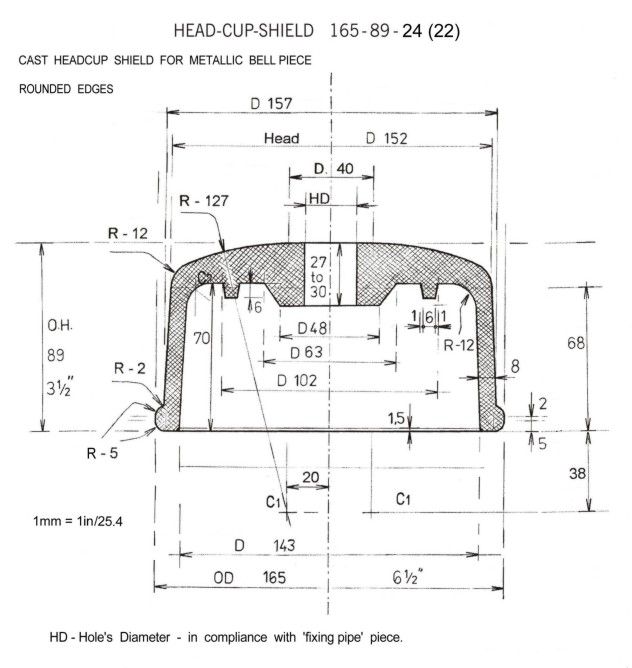

Head-Cup Shield 3

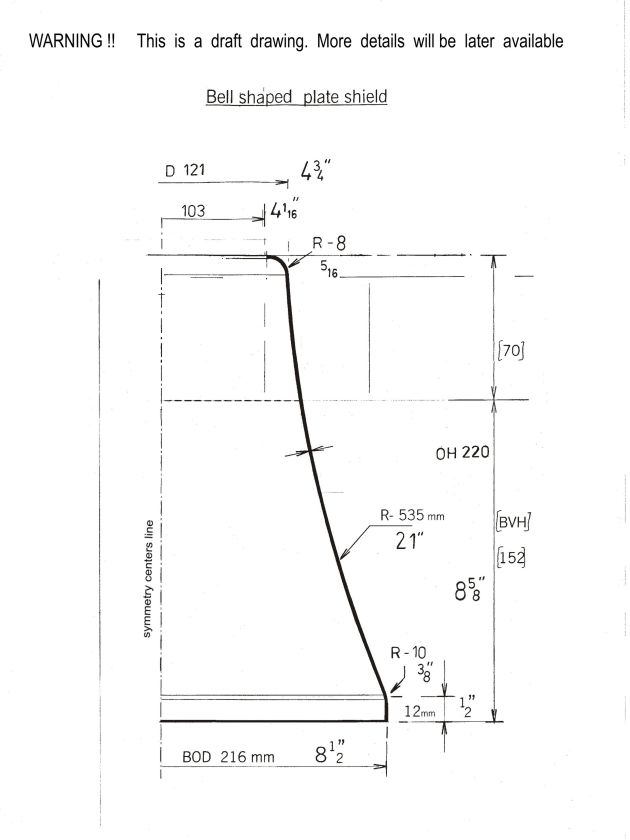

Bell-shaped Shield

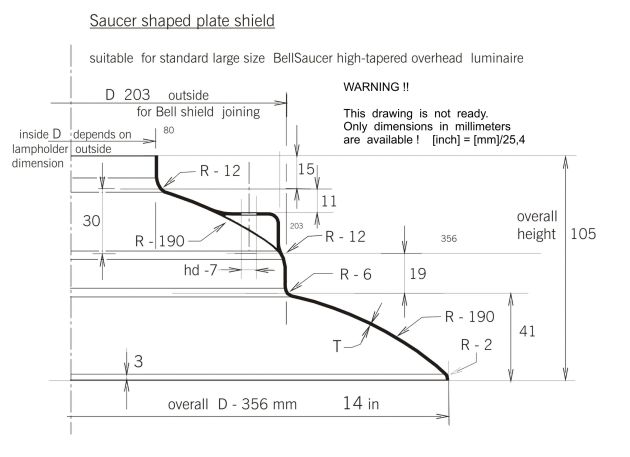

Saucer-shaped Shield
