Stylized Bell-Saucer overhead luminaires components


Example 3.2 - Stylized BellSaucer 165-210-356 Overhead Luminaire




Main features:


- Cast material head-cup shield.
- Pressed Aluminium or steel plate Bell-shaped shield.
- Pressed Aluminium or steel plate Saucer-shaped shield.


More details in this page will be available later

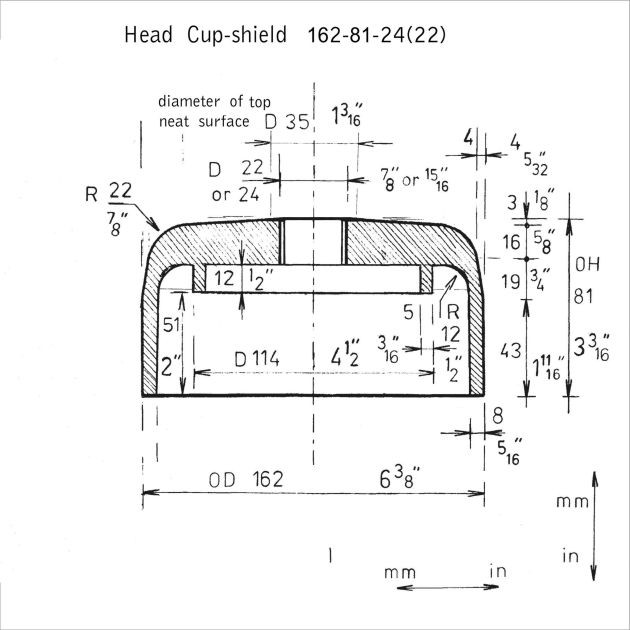

Head-Cup Shield 1

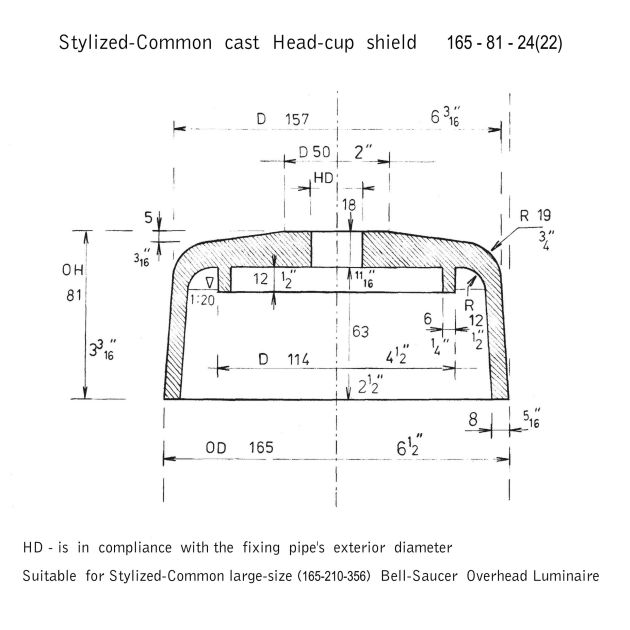

Head-Cup Shield 2

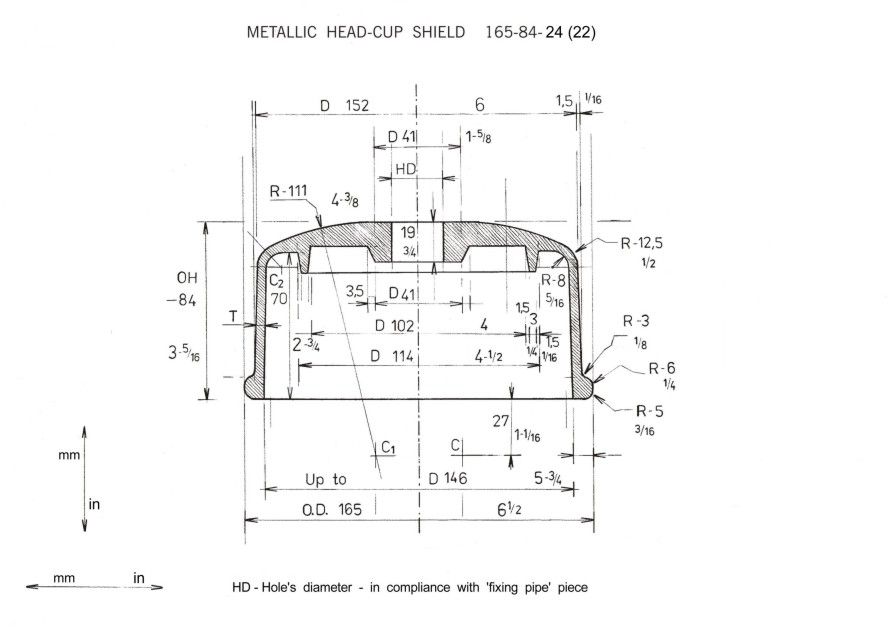

Head-Cup Shield 3

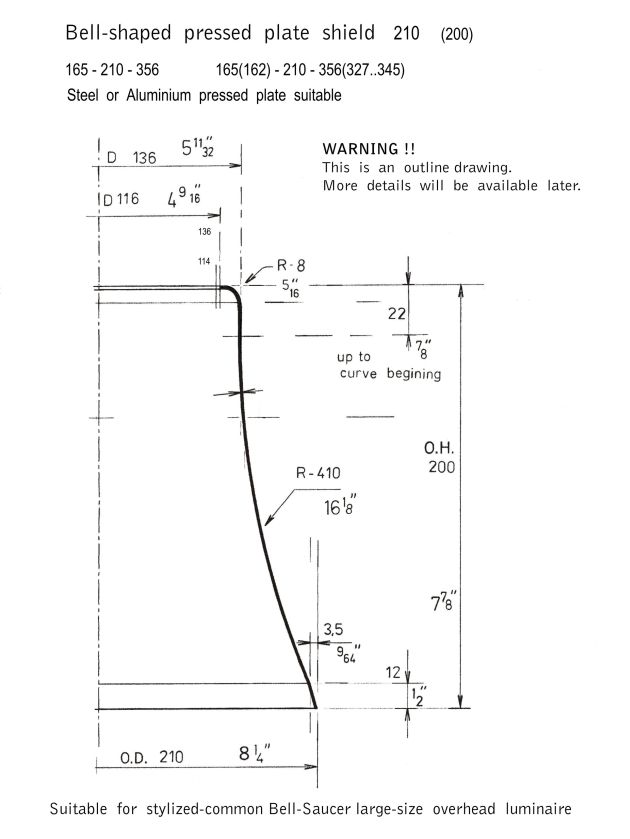

Bell-shaped Shield 1

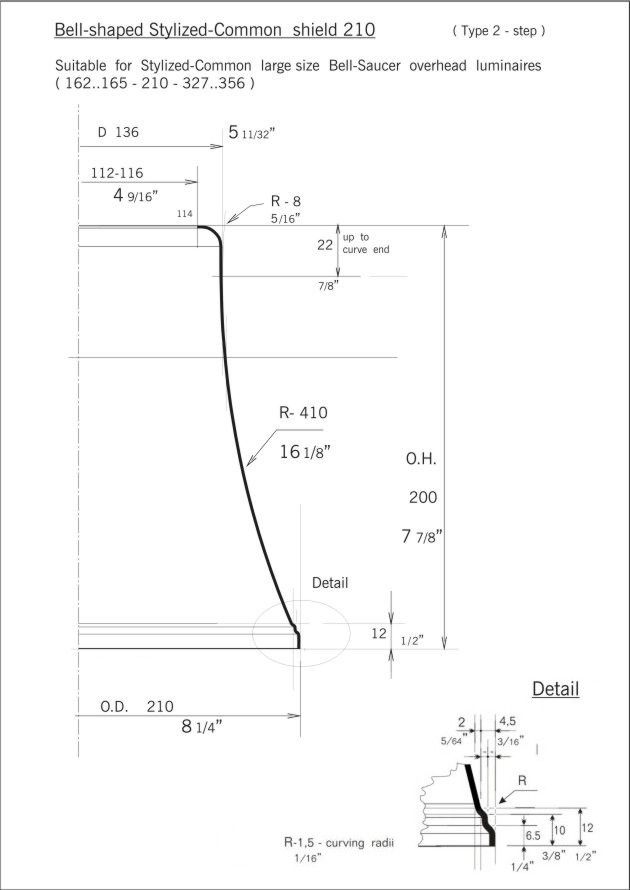

Bell-shaped Shield 2

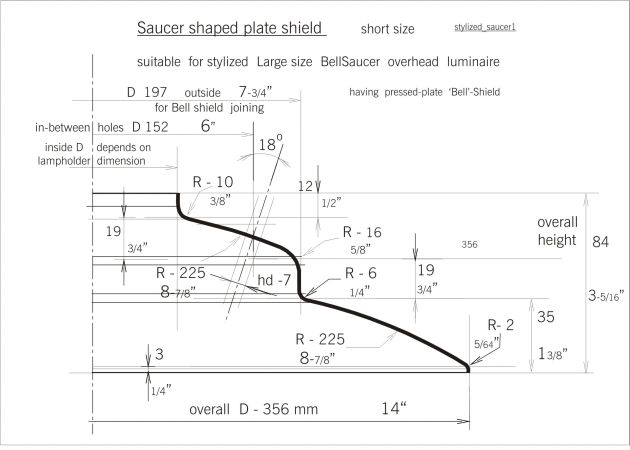

Saucer-shaped Shield
