'BELL-SAUCER' OVERHEAD LUMINAIRES - COMMON PIECES PAGE

Available for sizes of 356 mm, or 14 in



Common pieces list:

- Fixing pipe 22 to 24mm.
- Main (joining) fixing flange
- Lampholder fixing flange.
- Lampshade fixing flange.
- Lampshade
- Special Cut-off shields.

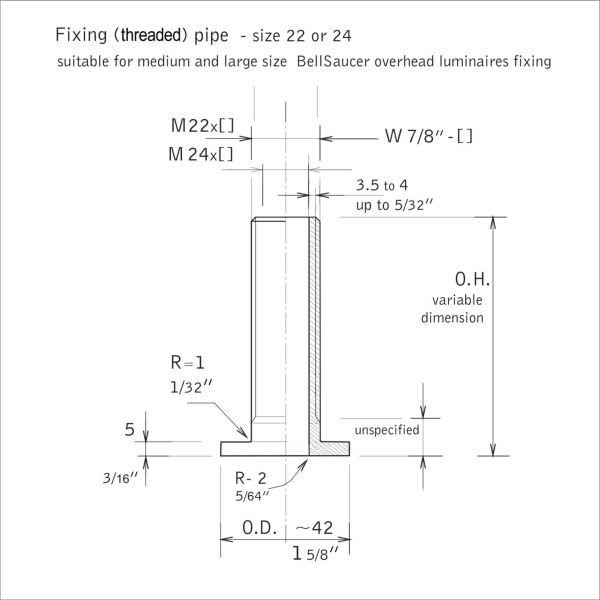

FIXING PIPE - (available for all types of Bell-Saucer large size luminaires)







BellSaucer 165-216-356 Overhead Luminaire - common components

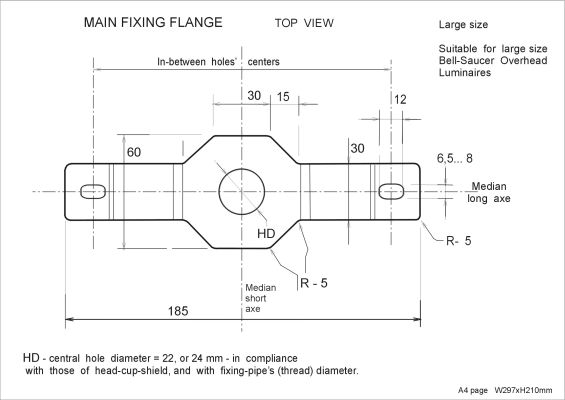

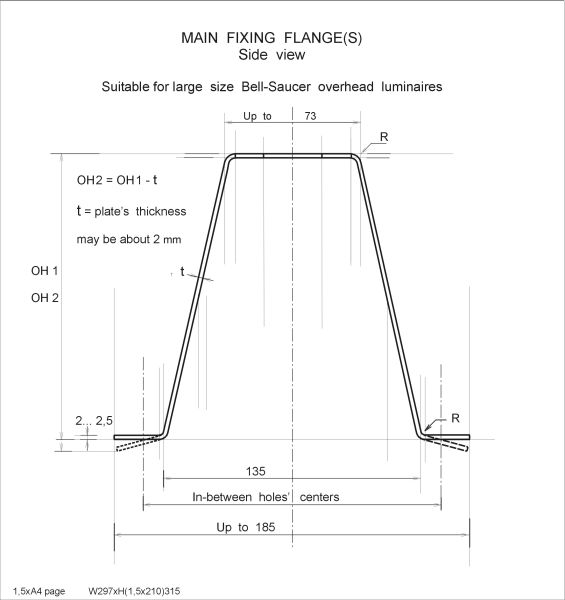

Main fixing flange (frame)
(available only for pressed-plate "bell"shield)

NOTICE !
Two pieces of such sample are necessary for each luminaire. One must be longer than the other in the value of the plate's thickness, and centered in the upper (largest) hole.

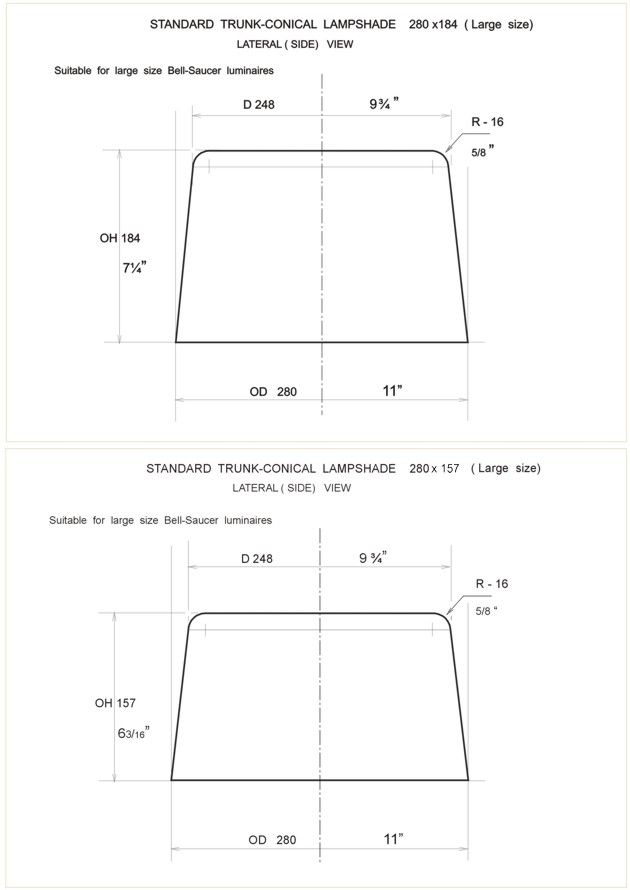

LAMPSHADES





back


210
