POST-TOP LUMINAIRE - SAUCER SHAPED BASES

Suitable for post-top two-pieces large size bases


Please scroll down and select the piece of your interest :

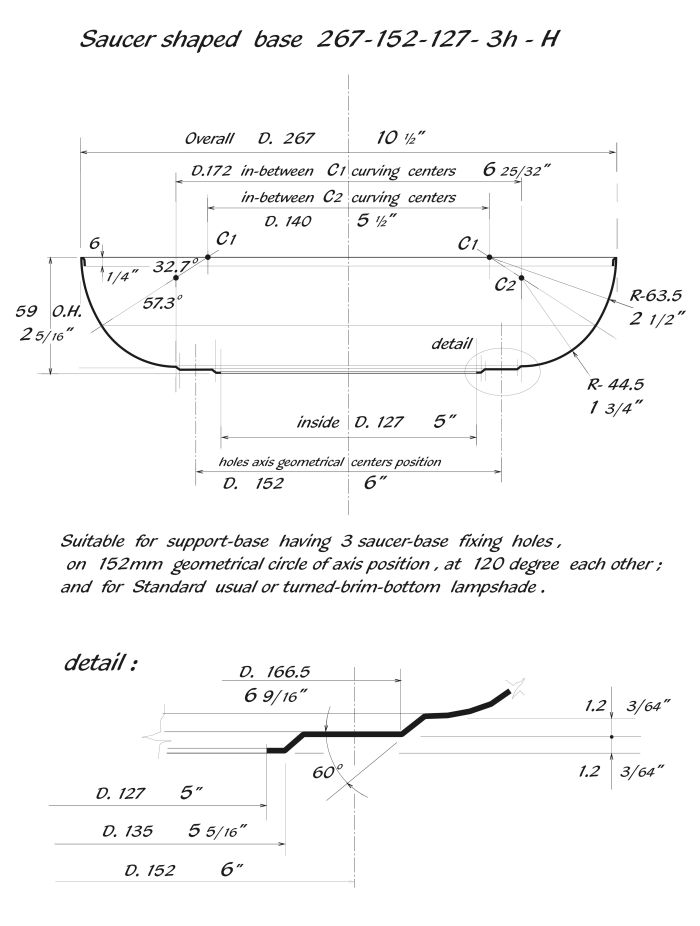

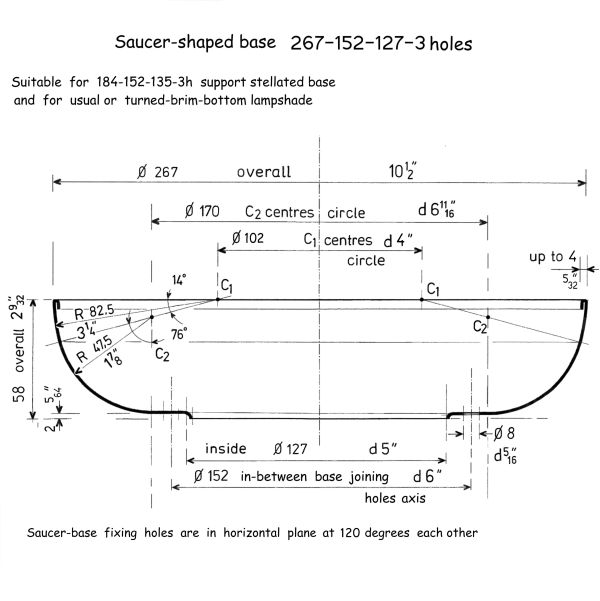

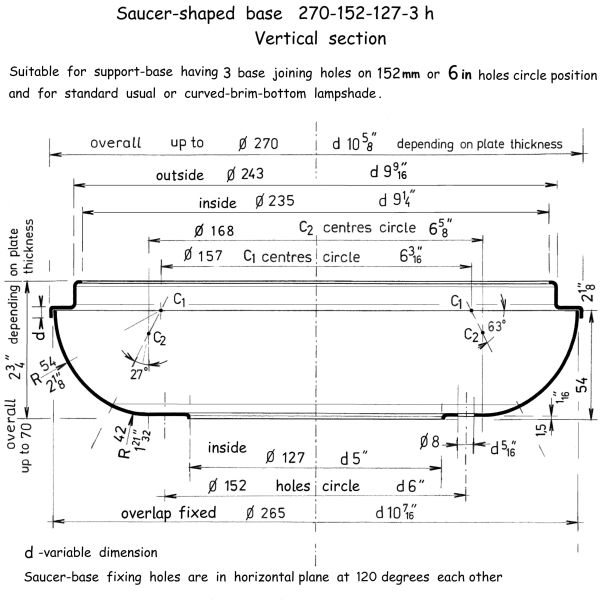

SAUCER SHAPED BASE - 3 fixing screws holes - 152mm holes' center circle

Top

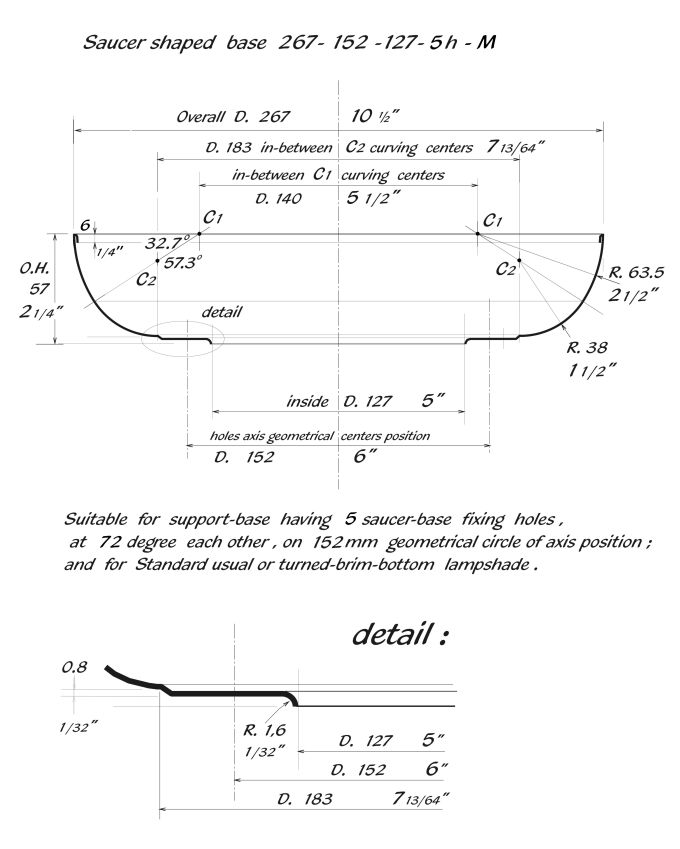

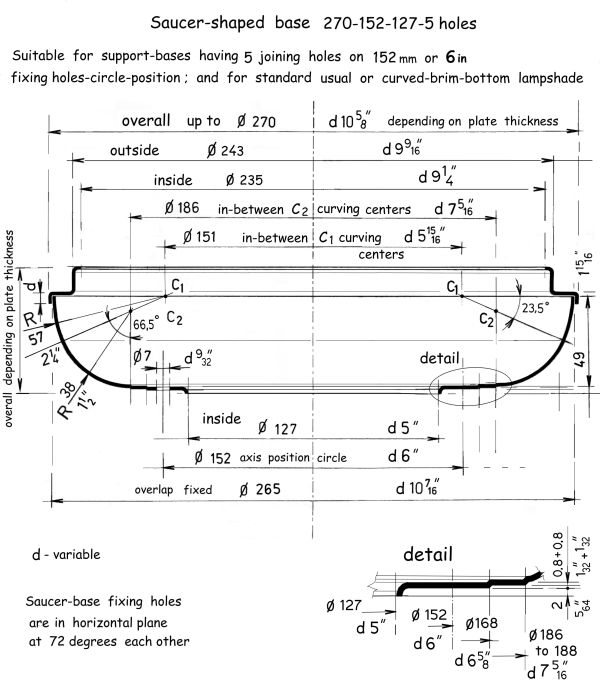

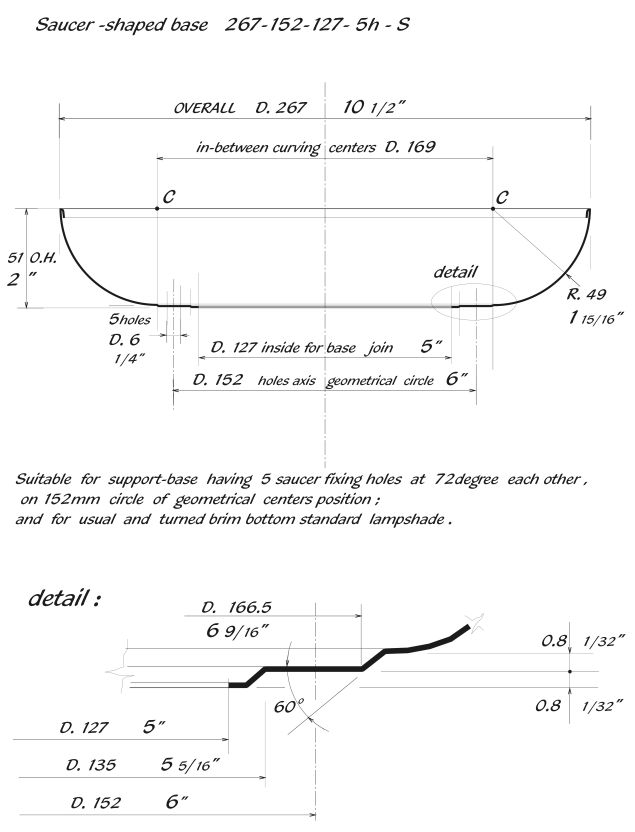

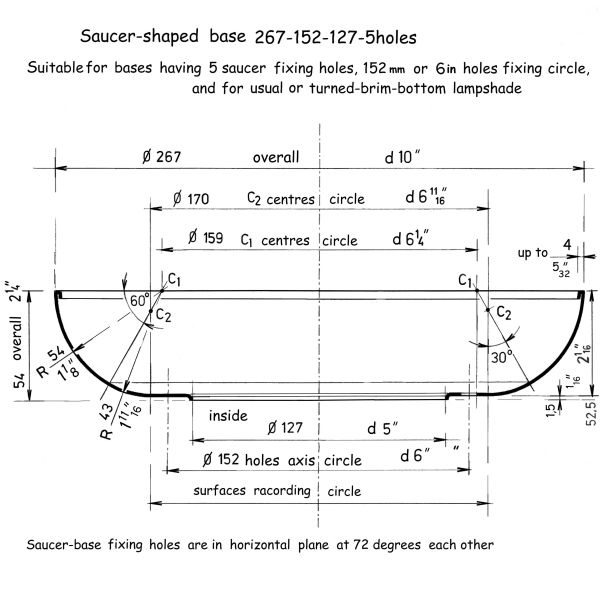

SAUCER SHAPED BASE - 5 fixing screws holes - 152mm holes' centers circle

Top

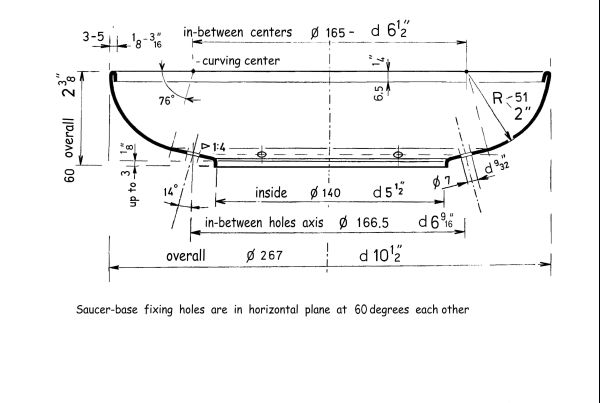

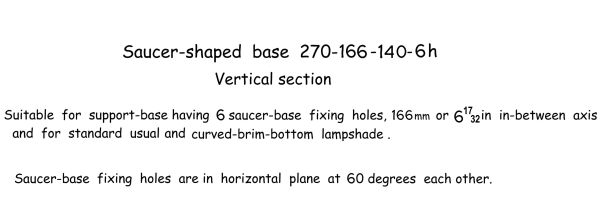

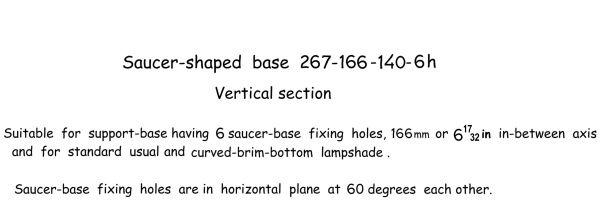

SAUCER SHAPED BASE - 6 fixing screws holes - 166mm holes' center circle

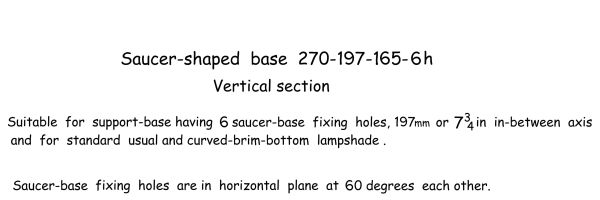

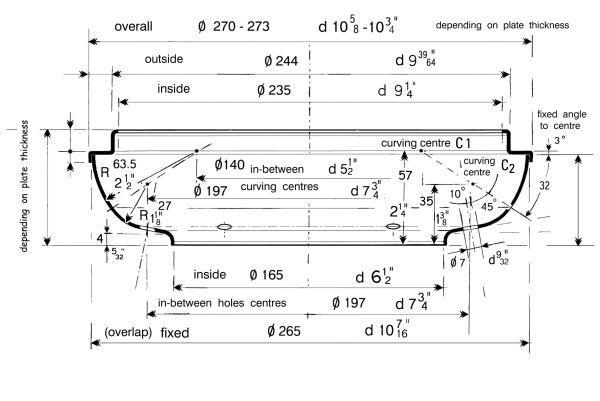

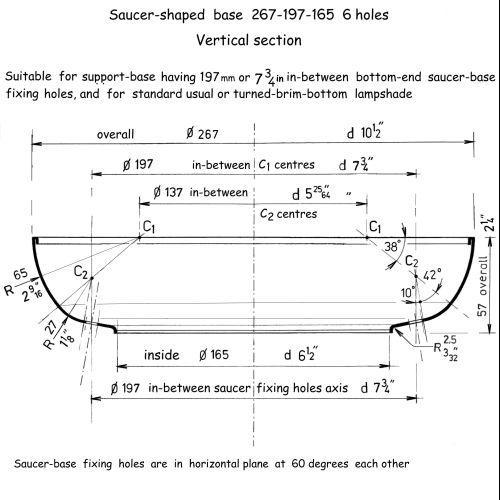

SAUCER SHAPED BASE - 6 fixing screws holes - 197mm holes' center circle


Top
