STANDARD TALL TRUNK-CONICAL POST-TOP LUMINAIRE

Cut-off shields



The upper surface of the cut-off-shields may be rough and black
(dark coloured ) coated, whereas, the below surface may be polished and glowing.

Cut-off-shields are estimatively designed. All pieces may be redesigned
by each manufacturer for performing a higher Cutoff level.


Related links

http://www.freepatentsonline.com/4231080.pdf http://www.freepatentsonline.com/4231080.html

http://www.freepatentsonline.com/6971772.pdf http://www.freepatentsonline.com/6971772.html

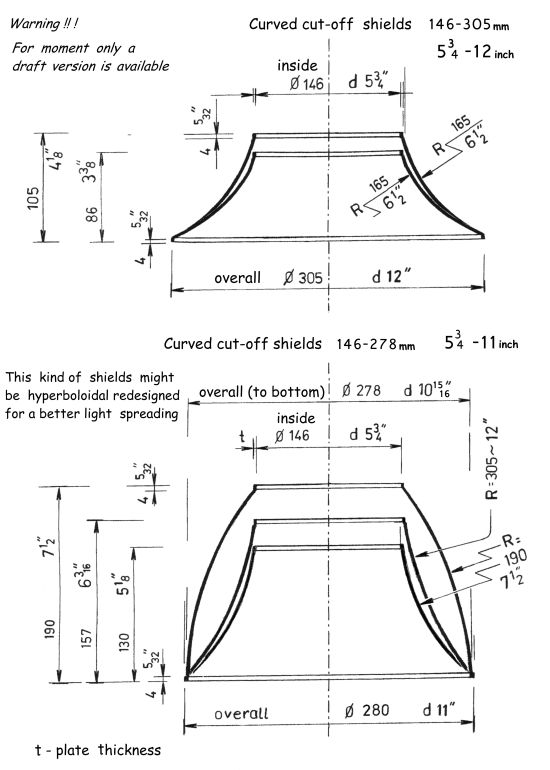

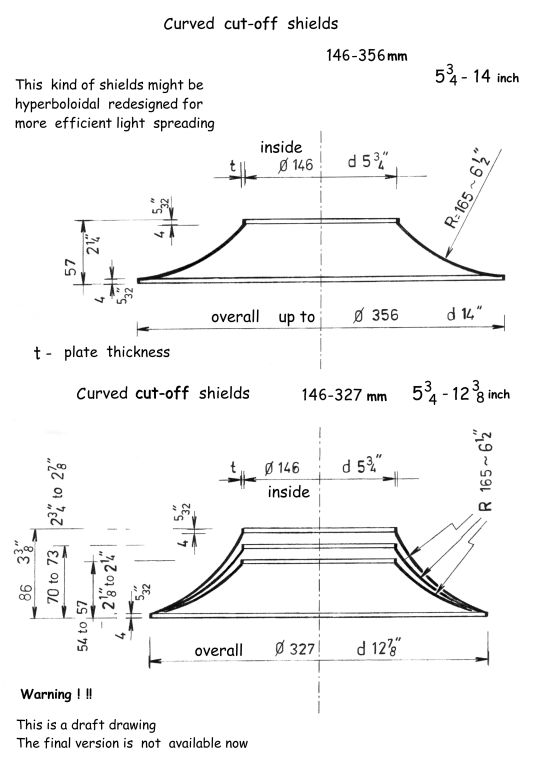

curved 146 cut-off shields



Top

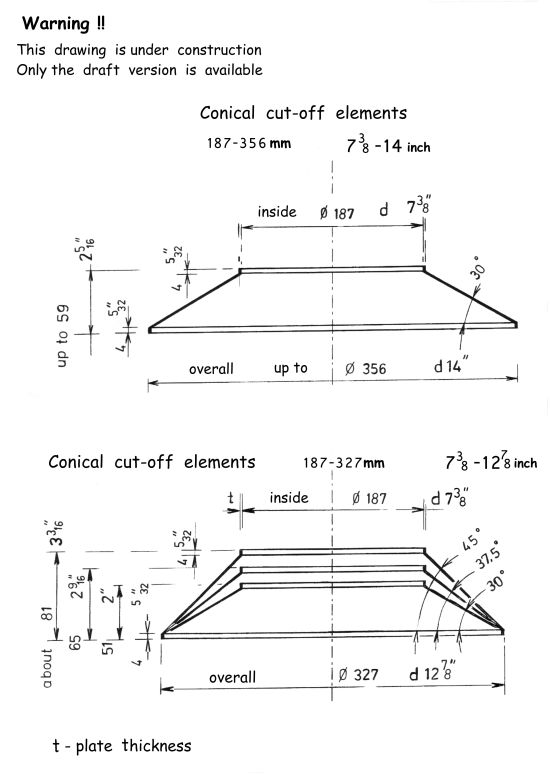

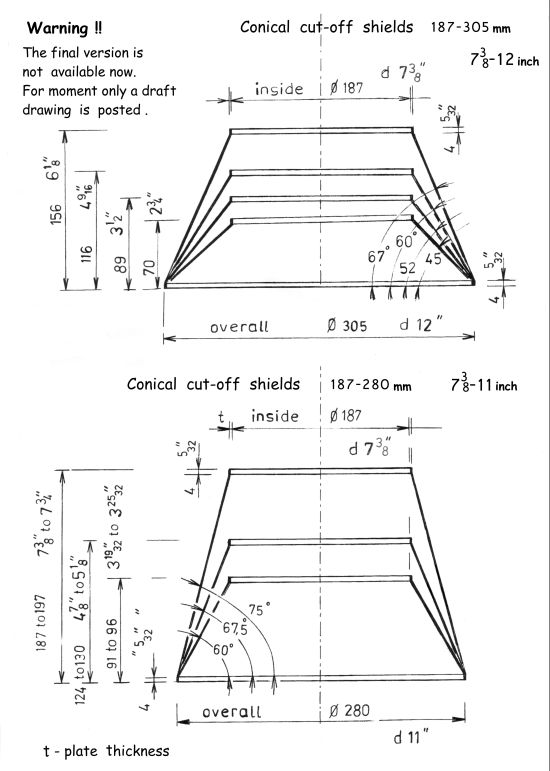

conical 187 cut-off shields



Top

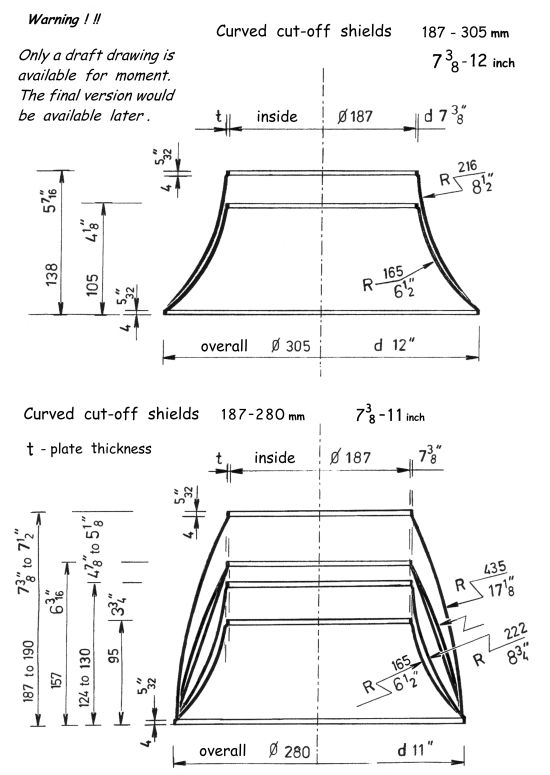

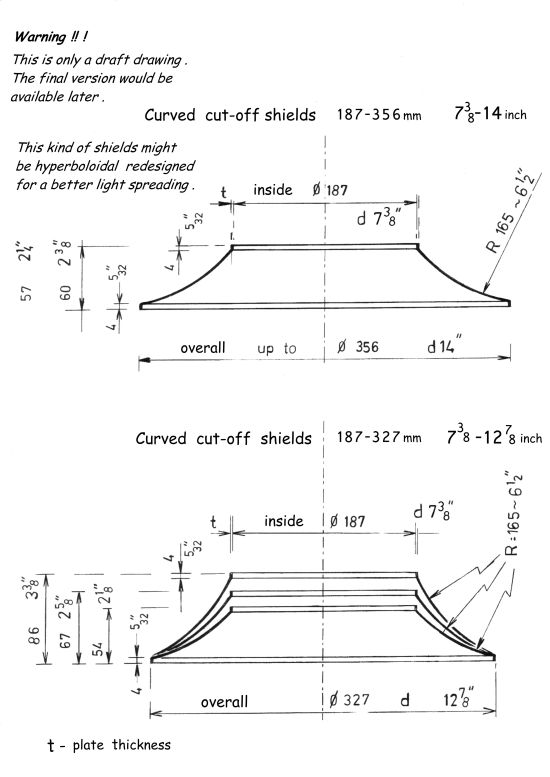

curved 187 cut-off shields



Top
